Graber Crystal Pleat Cellular Shade with Cocoon 3/8" Double Cell Blackout Fabric

Pleated and Cellular Shades: Double Honeycomb Cellular Shades: Graber:

Graber Crystal Pleat Cellular Shade with Cocoon 3/8" Double Cell Blackout Fabric

graber, garber, crystal pleat, cellular shades, cocoon blackout fabric

Product At A Glance
Slat Size	NA
Material	Cellular Fabric
Production Time	3 Business Days
Install Instructions	Cellular/Pleated

Description

******* We’re offering SPECIAL PRICING on all Graber blinds and shades including this shade – any size and any quantity. No coupon required *******

Graber, also know as Springs Window Fashions is one of the oldest and most respected companies in the industry. You can’t go wrong with any Graber product and our hot pricing makes them a really great value.

This shade is Cocoon 3/8” Double Cell Honeycomb.

Graber Crystal Pleat Cocoon Blackout Fabric shades are perfect for any room in which you would like complete privacy and light control. Created by a sophisticated laminated process, Cocoon fabric is exceptionally smooth and supple yet holds pleats crisply. Blackout means that light does not penetrate the fabric. A blackout shade provides total privacy while blocking out light. (Of course light can enter from the side, top and bottom of the window). Total blackout is achieved with an ultra thin layer of light blocking film that is sealed between two layers of soft fabric to create a true blackout shade. All Cocoon shades have a neutral color backing for a uniform street side appearance.

These shades offer superior energy efficiency keeping your room more comfortable year round. This is possible because the cells form pockets of air that insulate windows from heat and cold. And the cellular design absorbs sound, making the room quieter .Graber’s luxurious Crystal Pleat fabrics are exquisitely soft to the touch yet remarkably durable and easy to care for. Our color selection is rich and dazzling making your room decorating easy.

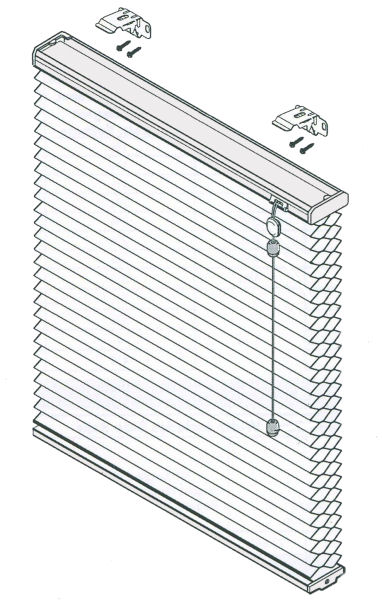

The 3/8” standard headrail and bottom rail are specially designed for the Crystal Pleat fabrics. Trim, yet strong the headrail and bottom rail are rust proof aluminum, and all shade components are color coordinated to the fabric. When raised the shades stack compactly so they practically disappear. The reliable cord lock control operates smoothly and easily. It’s designed to provide years of trouble-free use. Spring steel mounting brackets hold the headrail securely and are completely hidden. Shade installation is easy; it simply snaps into place. Continuous cord loop and cordless controls systems are available. For more information on these control systems and other options page down to the “select options” section and click on the red question mark behind the option.

Keep in mind that Continuous Loop Lift System is recommended for shades larger than 72" in width.

Production time for this shade is 3 business days. Please allow 2 to 5 business days for shipping.

SIZE CONSIDERATIONS

STANDARD SHADE
Headrail Dimensions –
Height – 11/16”
Depth – 1 9/16”
Bottom Rail Dimensions -
Height - 3/8”
Depth – 1 9/16”
Minimum Width 9” outside mount - 9 3/8” inside mount
Maximum Width -
Single shade – 86”
With side mount brackets – 60”
Multiple shades on one headrail – 192”
Minimum Height – 9”
Maximum Height – 96”
With side mount brackets – 96”
Minimum Depth for Inside Mount:
Standard mount – ¾”
Flush mount – 1 7/8”

CONTINUOUS LOOP LIFT SYSTEM OPTION
Headrail Dimensions –
Height – 1 7/16”
Depth – 2”
Bottom Rail Dimensions -
Height – 1/2”
Depth – 1 ½”
Minimum width 18” outside mount – 18 3/8” inside mount
Maximum Width -
Single shade – 86”
Multiple shades on one headrail with one control – 120”
Multiple shades on one headrail with two controls – 144”
Minimum Height – 9”
Maximum Height – 96”
Minimum Depth for Inside Mount:
Standard mount – ¾”
Flush mount – 2 1/8”

CORDLESS SHADE OPTION
Headrail Dimensions –
Height – 1 7/16”
Depth – 2”
Bottom Rail Dimensions -
Height – 1/2”
Depth – 1 ½”
Minimum Width –
17” outside mount – 17 7/8 inside mount
Maximum Width -
Single shade - 86”
Multiple shades on one headrail – 144”
Minimum Height – 12”
Maximum Height –
Single shade – 86”
Multiple shades on one headrail – 86”
Minimum Depth for Inside Mount -
Standard Mount – ¾”
Flush Mount – 2 1/8”

Standard Features

• 3/8" Blackout Double Cell Fabric
• Neutral to Street Side
• Color Coordinated Components
• Aluminum Headrail with Hidden Brackets

• Aluminum Bottom Rail
• Standard Controls Right Side
• Optional Lift Systems Avaialable (see "select options section)
• Limited Lifetime Warranty

Select Options

Controls Left Side - no charge

Graber 2 on 1 - price varies

Graber 3 on 1 - price varies

Graber Continuous Loop Lift System - price varies

Tile Cut Out - add $25.00

Top Down, Bottom Up - price varies

Mount:

*Blinds wider than 86" must be split into 2 or 3 blinds on 1 head rail.

Select Color

Orchid Ridge 3824	Livingston 3822	High Point 3821	Stonefield 3818	Savannah 3820	Wetlands 3826

Saw Mill 3836	Cafe 3815	Waters Edge 3832	Desert Dust 3839	Foliage 3837	Seedling 3841

Stream 3842	Thistle 3843
